Remote Hydrant and Pump Specs

• Constructed from 4- inch schedule 40 aircraft-grade 6061 aluminum
• Powder coated finish
• 3- inch NPT accessory port connection
• 3-inch cam-lock input fitting
• 2.5 inch NH output connection
• 200ft onboard control line
• Maximum distance from pump: 500ft (single pump)
• Hydrant dry weight 50lbs.
• Hydrant operational weight 110 lbs.(ballast-filled
• Simple ON/OFF  Switch Operation

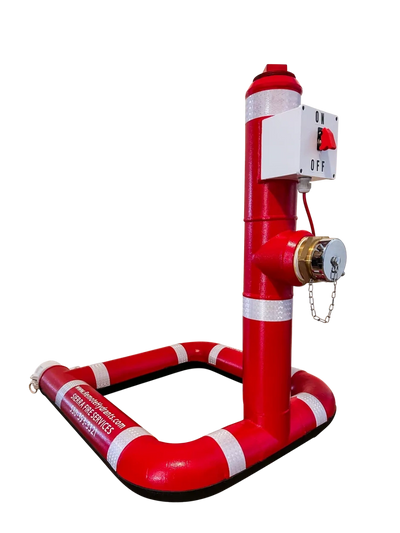

This device is strategically placed in an easily accessible area for personnel. It can be located up to 500 feet away from a single pump, located at the water source. (Capable of further distances with multiple pumps inline.) The pump control operation is integrated into the hydrant; switching it on sends a signal to the pump located at the water supply, initiating pumping, and switching it off shuts down the pump, placing it into standby status.

• Max GPM: 400
• Max PSI: 40
• Max Head: 95 feet
• Max Suction Lift: 25 feet
• Dry Weight: 200 lbs.
• Continuous Run Time:  Up to 10 hours between fueling when properly equipped
• 3-inch hard suction hose with fish friendly screen
• Internal pump check valve
• Fuel Type: GAS

A robust gas-powered pump capable of delivering up to 400 GPM, yet compact enough for placement in challenging areas with limited access. The pump can be manually wheeled to the waters edge or winched/craned into place depending on the terrain. Notably, the pump can be started remotely from the hydrant, conveniently positioned roadside up to 500 ft.  away
